Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays

Brand Name : Bitvisus

Place of Origin : Guangdong, China

MOQ : 1

Price : CN¥862.67-1,187.03

Material : Metal

Input interface : 4x HDMI1.3 (≤15m) HDCP1.4

Input pixel frequency : 165MHz

Output interface : 1xHDMI 2 (≤10m) HDCP 2.1.0

Output pixel frequency : 594MHz

Split mode : 2 Split, 4 split

Power supply : DC 12V 2A

Dimensions : 233mm x 108mm x 28.7mm

Weight : 1.8KG

Input resolution : 1920x1080@60Hz

Output resolution : 3840x2160@60Hz

Control method : Key button, infrared remote control, serial port

Audio support : Switching select audio channels

Heat dissipation : Conduction heat dissipation

Mobile screen projection : Supports 3 mobile phone screen projection

Contact Now

Professional Multi-Layout Video Processor
BIT-MV-4K60-401 is a high-performance image segmentation processor featuring a high-definition processing chip that supports 1080P signal input and 4K60/1080P signal output. Utilizing HDMI input and output interfaces, this processor is ideal for small projects including playrooms, multi-screen surgical theatres, modern studios, multimedia gymnasiums, and game rooms.
Technical Specifications
Product Name BIT-MV-4K60-401
Input Interface Maximum Video Pixel Frequency 165MHz
Output Interface Maximum Video Pixel Frequency 594MHz
Input Maximum Resolution 1920x1080@60Hz
Maximum Output Resolution 3840x2160@60Hz
HDMI Input Interface 4 x HDMI1.3
HDMI Output Interface 1 x HDMI2.0
Control Mode Remote Control, Button, RS232
Factory Default Resolution 1920x1080@60Hz
Input Connector Type 4 HDMI inputs
Output Interface Type 1 HDMI output
Size 233mm x 108mm x 28.7mm
Weight 1.8KG
Power Supply 12V@2A AC-DC power supply
Warranty One year
Input & Output Capabilities
4 HDMI Inputs
  • Input resolution supports 1920x1080@60Hz
  • Highest video pixel frequency of input interface: 165MHz
1 HDMI Output
  • Output resolution supports 1920x1080@60Hz, 3840x2160@60Hz
  • Highest video pixel frequency of output interface: 594MHz
  • Output distance: 10 meters
Product Features
  • Input supports HDMI 1.3, HDCP 1.4

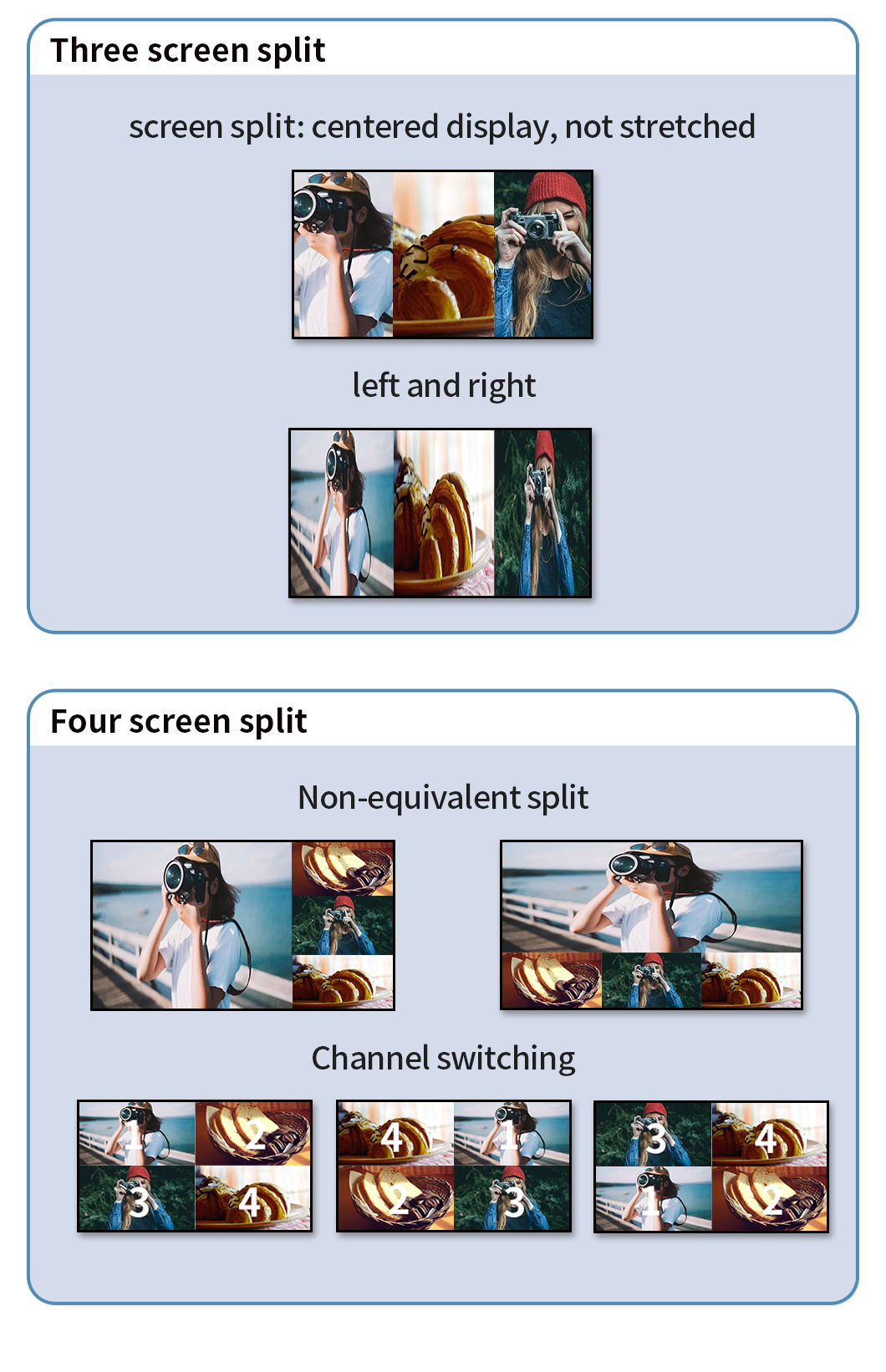

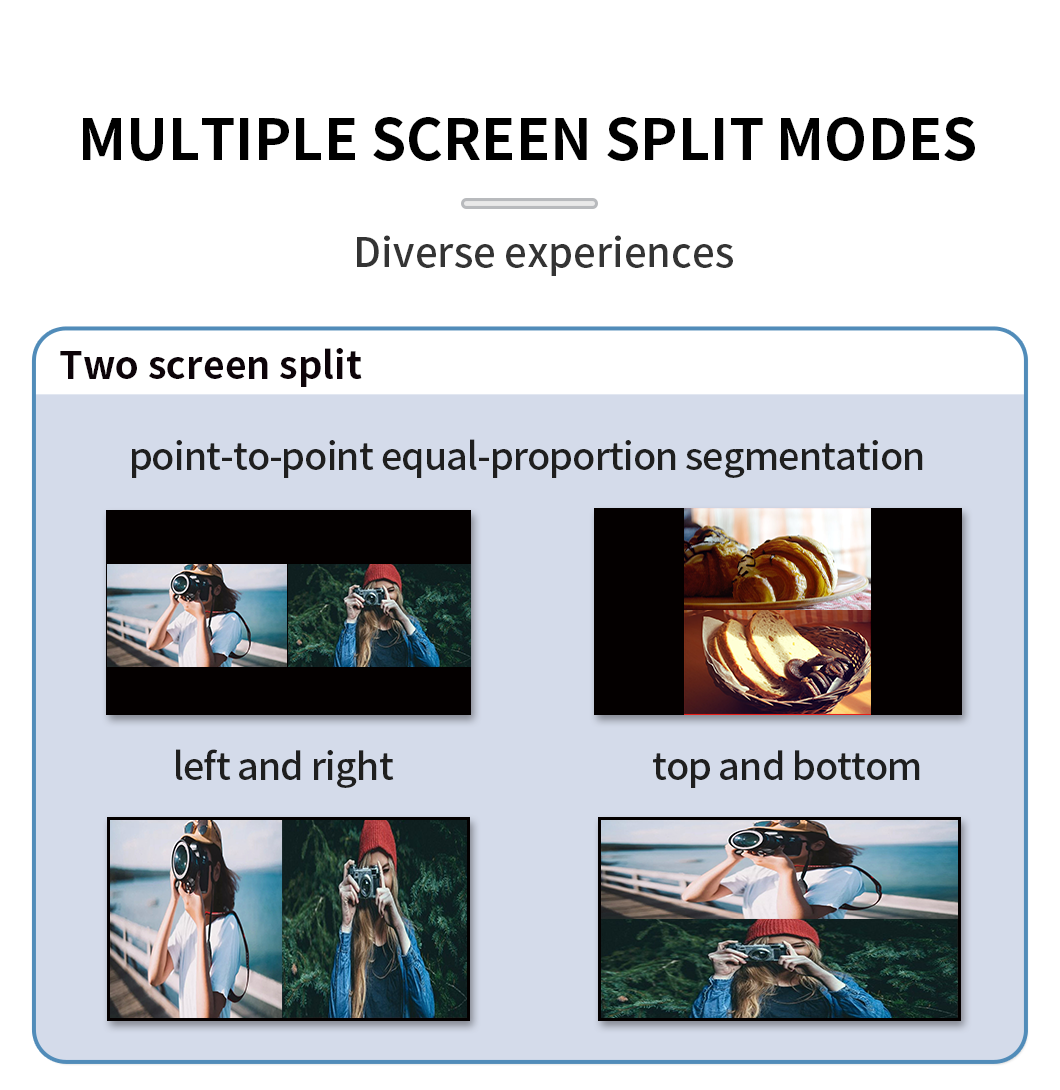

  • Supports single-screen rotation, left-right screen splitting, top-bottom screen splitting, four-screen splitting, equal-ratio splitting, one big and three small splits
  • Pure hardware design, plug and play, no software required
  • Support seamless switching and overall brightness adjustment

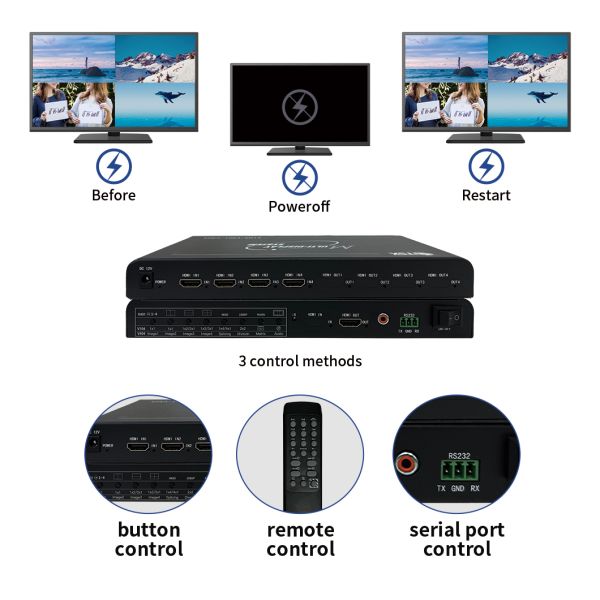

  • Support button control, remote control, serial port control
  • Support audio channel switching, audio separation
  • Low power consumption, energy saving and environmental protection design with conduction heat dissipation
  • Using mobile phone adapter cable, supports 3 mobile phone screen projection simultaneously

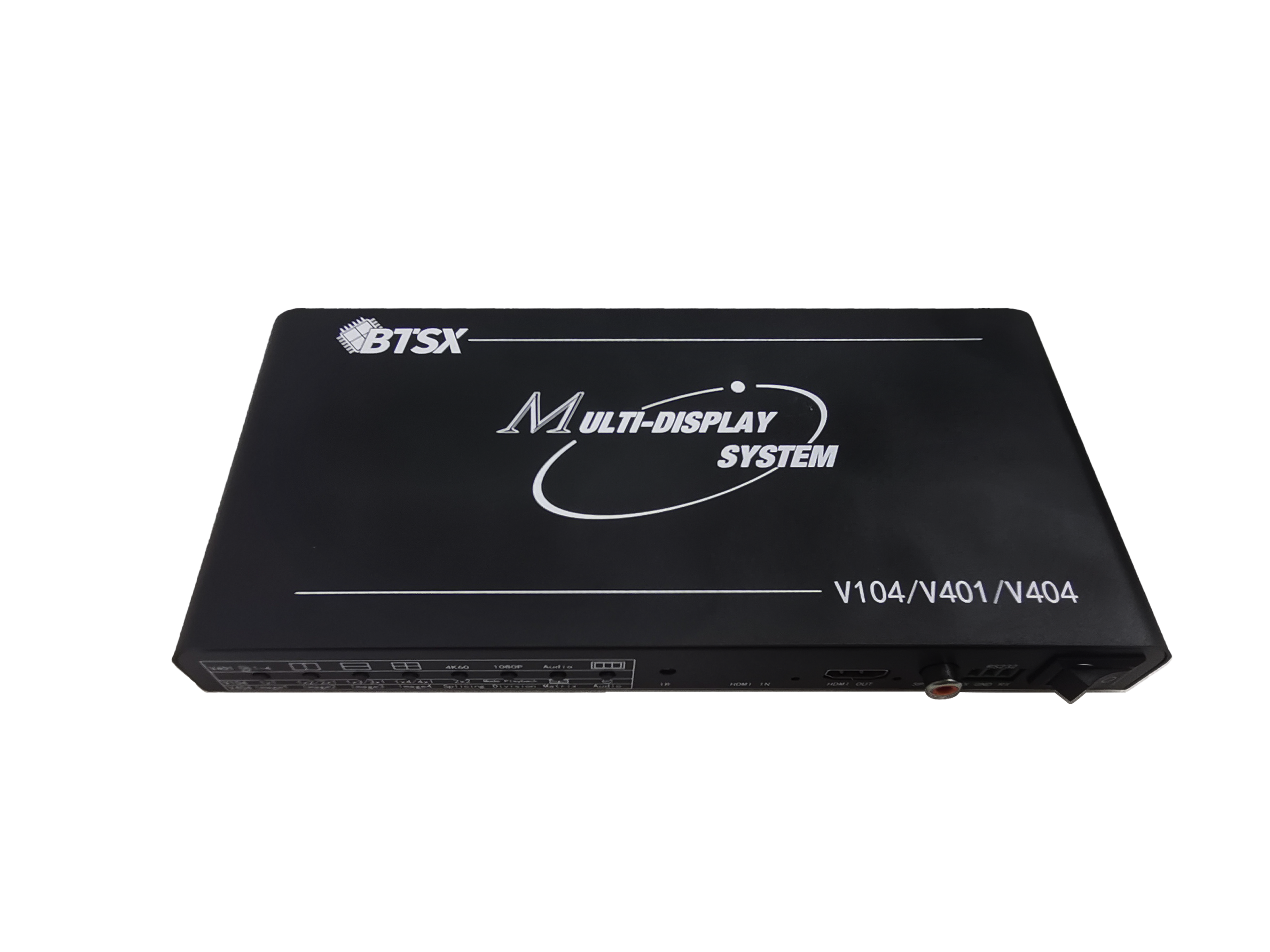

Product Images
Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays
Product Packaging
Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays
Company Information
Based in Guangdong, China, established in 2018, serving markets in North America (30%), Domestic Market (30%), Southeast Asia (20%), Mid East (10%), and Northern Europe (10%). Our team consists of approximately 100 professionals with a strong R&D department featuring over 10 experienced engineers from leading companies including Huawei, ZTE, and Xilinx.
Quality Assurance
Always provide pre-production samples before mass production and conduct final inspection before shipment.
Product Range
TV Video Wall Controller, HDMI Extender, HDMI Matrix Switcher, Multi Viewer, HDMI Fiber Cable.
Services Provided
Accepted Delivery Terms: FOB, EXW, FCA, DDP, Express Delivery, DAF. Accepted Payment Currency: USD, HKD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash. Languages: English, Chinese, Spanish, Japanese, French, Russian, Korean.
Company Exhibition
Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays Professional 4K60 Video Wall Controller with Seamless Switching and RS232 Remote Control for Multi-Screen Displays
