MSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out Configuration

Brand Name : Bitvisus

Model Number : BIT-MSE-8K60-204HD

Certification : CE、FCC、GB

Place of Origin : Guangdong China

MOQ : 1

Price : USD358

Payment Terms : T/T

Supply Ability : 1 unit,3days;10 units,15days

Delivery Time : 7 days

Packaging Details : 2KG, 36cm*21.5cm*7cm

Product Name : BIT-MSE-8K60-204HD

Product Type : 2-in 4-out 8K60 Ultra High Resolution Multi-Screen Expander

Input Interface : 2xHDMI2.1/2xDP 1.4

Output Interface : 4XHDMI 2.0

Resolution : 8192x2160P60

Feature : Ultra Clear Processor

Warranty : 3 Years

Input Maximum Pixel Clock Frequency : 1200MHz

Output Maximum Pixel Clock Frequency : 600MHz

Input Maximum Resolution : 8192×2160P60

Output resolution : 4096×2160P60、3840×2160P60、3840×2400P60、2560× 1600P60、2560×14400P60、1920×1080P120、1920× 1200P120、1920×1080P60、1920×1200P60

Contact Now

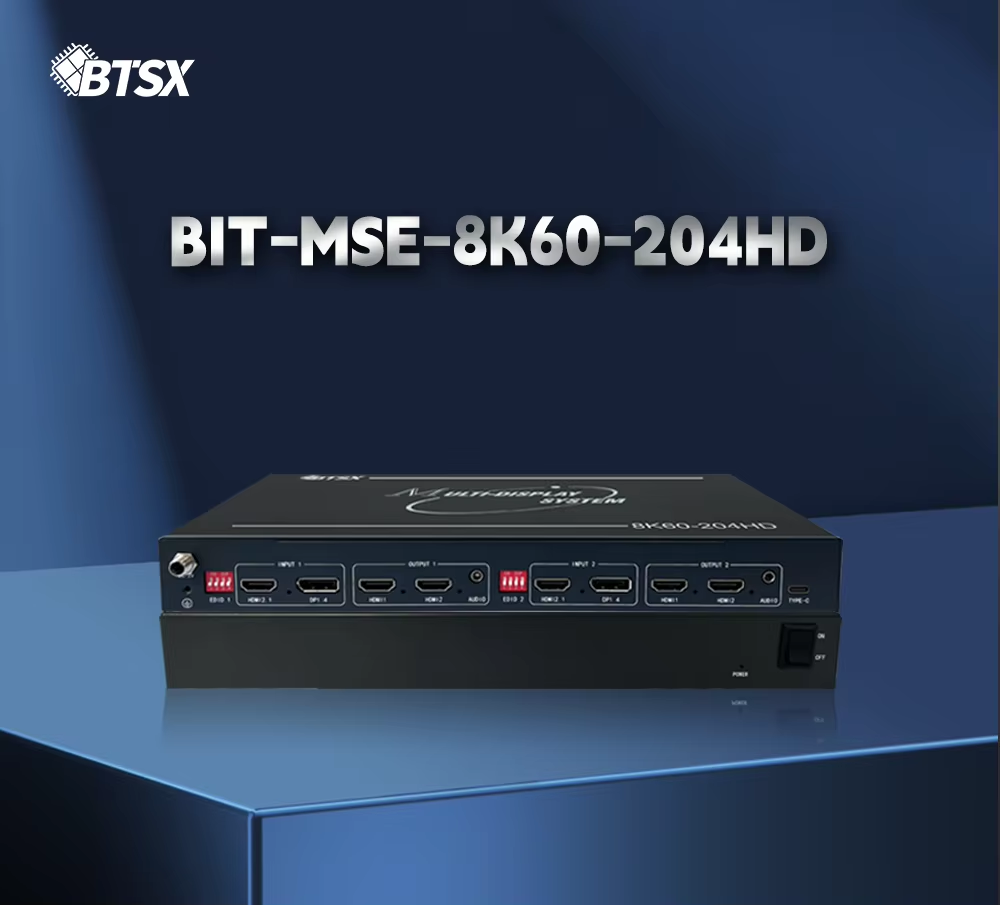

BIT-MSE-8K60-204HD Industrial Multi-Screen Processor
Professional 8K60 Multi-Screen Processor for Industrial-Grade Performance

The BIT-MSE-8K60-204HD is an industrial-grade video wall processor engineered by Bitvisus to meet demanding 4K60 multi-desktop operations and multi-channel display needs. Supporting 2× 8K inputs (HDMI/DP selectable) and 4× 4K60 HDMI outputs, it delivers ultra-clear, fluid visuals across ultra-high-definition large screens or standard monitors.

Key Applications
  • Command & Control Centers
  • Multi-Channel 4K60 Projection Systems
  • Exhibition Halls & Digital Signage
  • Virtual Reality (VR) Environments
  • LCD/LED Video Walls
Product Characteristics
Ultra-High Resolution & Flexibility
Dual 8K Inputs: 2× independent 8K ports (HDMI or DP selectable), supporting up to 7680×2160@60Hz per input. Quad 4K Outputs: 4× HDMI 2.0 outputs @3840×2160@60Hz, compatible with all mainstream displays.
Seamless Multi-Screen Control

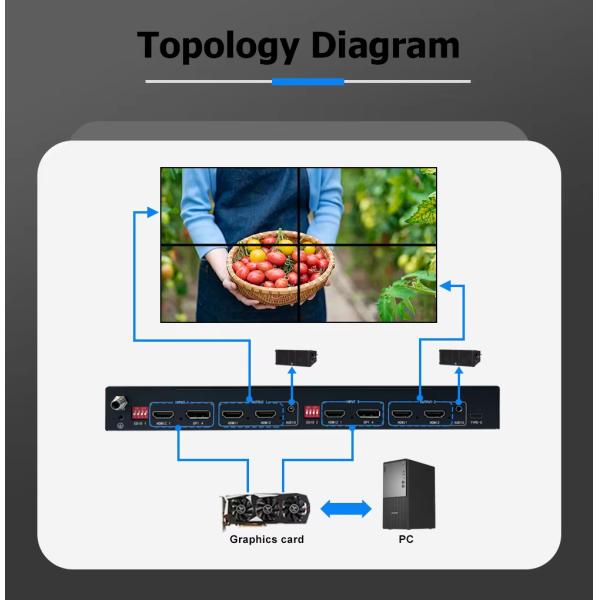

Zero-Latency Splicing: Supports 1×2, 2×2, or 1×4 layouts for pixel-perfect 4K60 video walls without stretching or distortion. Real-Time Processing: All-hardware architecture ensures ultra-fast operation with no lag (no software dependency).
Industrial-Grade Reliability
16KV Super Anti-Static Protection: Withstands harsh electrical environments. Advanced Thermal Design: 18W thermal-conductive material + internal heat dissipation + overheating protection for 24/7 stable operation. Anti-Interference Shielding: Ensures signal integrity in complex setups.
Efficiency & Compatibility
Low-Power Design: Energy-efficient (18W TDP) and eco-friendly. Bitvisus OpenWindow Software: Enables 8K60 multi-window display with drag-and-control flexibility. Parallel Operation Mode: Guarantees uninterrupted large-screen display during maintenance.
Technical Specifications
Product Name BIT-MSE-8K60-204HD
Input Interface Type 2× HDMI 2.1, 2× DP 1.4 (Copper wire ≤ 3M)
HDCP 2.2
Input Interface Maximum Video Pixel Frequency 1200MHz
Maximum Resolution 8192×2160P60
Color Format RGB444, YUV444, YUV422
Output Interface Type 4× HDMI 2.0 (Copper wire ≤ 10M)
Output Interface Maximum Video Pixel Frequency 600MHz
Output Resolution 4096×2160P60, 3840×2160P60, 3840×2400P60, 2560×1600P60, 2560×1440P60, 1920×1080P120, 1920×1200P120, 1920×1080P60, 1920×1200P60
Color Depth 8bit
Audio 3.5MM audio separation, HDMI audio follow out
Power Supply DC12V/5A
Power Consumption 20W
Storage/Working Temperature -10 to 50°C / 0 to 50°C
Product Size 290mm × 143mm × 35mm (L×W×H)
Package Size 360mm × 215mm × 70mm (L×W×H)
Product Weight 1.2KG
Packing Weight 1.7KG
Accessories List 1 × 12V5A power adapter, 2 × HDMI 2.1 cable or DP1.4 cable
Warranty 3-year warranty
Product Features
MSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out ConfigurationMSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out ConfigurationMSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out ConfigurationMSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out ConfigurationMSE-8K60-204HD 8K60 Multi-Screen Expander with 8192×2160P60 Resolution, 16KV Anti-static Protection, and 2 In 4 Out Configuration

Frequently Asked Questions
Why Choose Bitvisus?

We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays). We offer OEM/ODM services and provide a comprehensive range of professional AV products including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems, demonstrating our extensive R&D experience and product quality assurance.

Shipment & Payment

We accept T/T, Visa, PayPal, Western Union, and L/C payments. Shipping options include DHL, UPS, EMS, FedEx, Air freight, and Sea freight to meet your logistics requirements.

How to Order?

Contact us via email or chat platforms (TM, WhatsApp, Skype) with your order requirements. We will provide a proforma invoice for your review. Once payment is confirmed, we will expedite delivery of your order.
