4K60 Video Wall Controller with 1 into 6 Out HDMI Video Processor and Low Power Conduction Cooling

Brand Name : Bitvisus

Place of Origin : Guangdong, China

MOQ : 1

Price : $165-226

Model Number : BIT-VWC-106

Certification : CE,HDMI,HDCP,RoHS,FCC

Payment Terms : T/T,PayPal

Supply Ability : 1000

Delivery Time : 5-8 days

Packaging Details : 37*24*11

Input interface : HDMI 2.0/DP 1.2, HDCP2.2

Output interface : HDMI 1.3x6 (≤15m)

Input pixel frequency : 600MHz

Output pixel frequency : 165MHz

Input resolution : 3840x2400@60Hz

Output resolution : 1920x1080@60Hz/1920x1200@60Hz

Sound frequency : HDMI follow out, 3.5mm audio splitter connector

Control method : Pushbutton, infrared remote control, serial port RS232

Power supply : DC 12V 2A

Power wastage : 12W

Storage temperature : -10～50ºC

Working temperature : 0～50ºC

Package weight : 1.6KG

FPGA process : 40nm

Output rotation : 180°

Contact Now

4K60 Video Wall Controller with Low Power Conduction Cooling

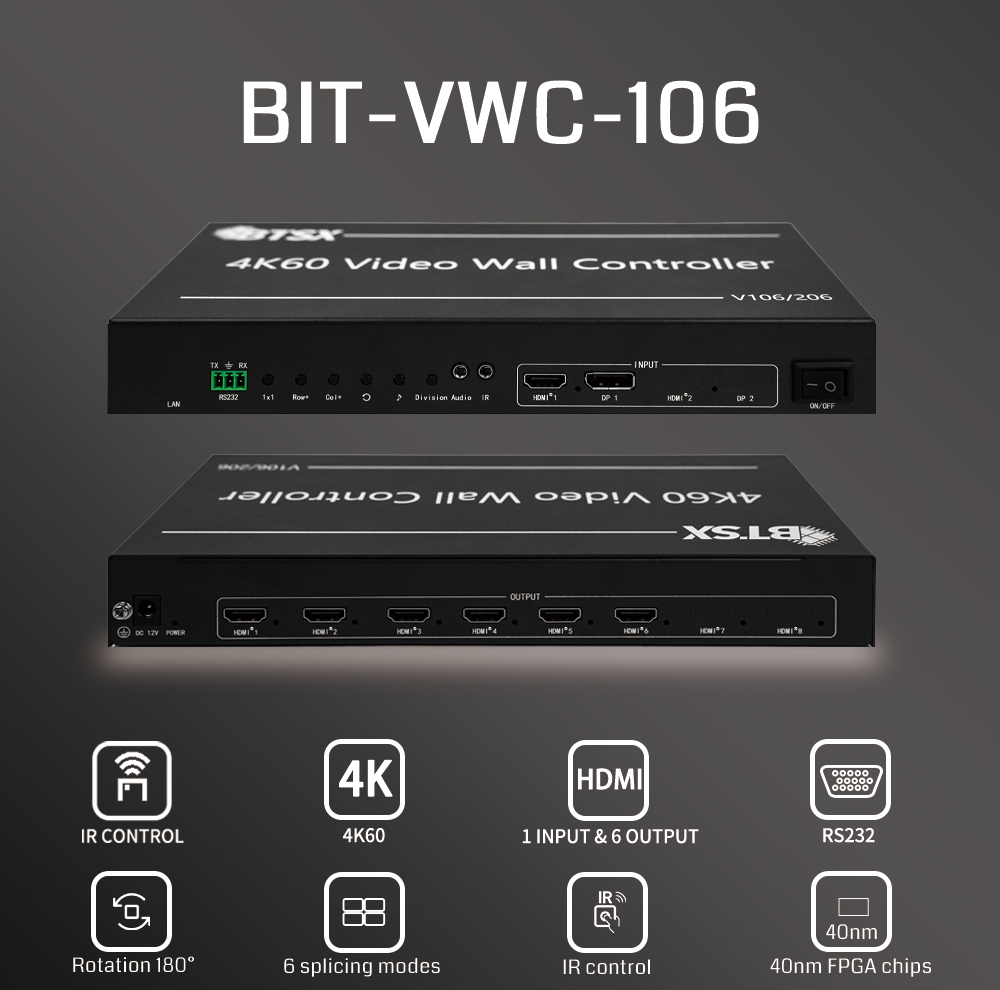

The BIT-VWC-106 is an advanced Ultra HD video wall controller from Bitvisus, featuring 1 HDMI/DP input and 6 HDMI outputs. This compact device enables flexible display configurations for store advertising, exhibitions, and professional display applications.
4K60 Video Wall Controller with 1 into 6 Out HDMI Video Processor and Low Power Conduction Cooling


Key Features
  • 1 into 6 out configuration for versatile screen arrangements
  • Supports multiple splicing modes: horizontal, vertical, and field shape layouts
  • Input resolution up to 3840x2400@60Hz with backward compatibility
  • Output supports 180° rotation of the first line
  • No stretching, distortion, or compression - maintains picture clarity
  • Single display mode (1x1) support
  • Multiple control options: pushbutton, infrared remote, and RS232 serial port
  • Low power consumption with internal conduction cooling - no external cooling required
  • Compatible with computers, Android boxes, game consoles, and other input sources
  • 40nm process high-end programmable FPGA chip for ultra-fast processing without delays
4K60 Video Wall Controller with 1 into 6 Out HDMI Video Processor and Low Power Conduction Cooling
Technical Specifications
Product Name BIT-VWC-106
Input Interface HDMI 2.0/DP 1.2, HDCP2.2
Output Interface HDMI 1.3 × 6 (≤15m)
Input Video Pixel Frequency 600MHz
Output Video Pixel Frequency 165MHz
Input Resolution 2×3: 5760×2160@30Hz
3×2: 3840×3240@30Hz
5×1: 1920×5400@30Hz
6×1: 1920×6480@30Hz
Output Resolution 1920×1080@60Hz / 1920×1200@60Hz
Audio HDMI follow out, 3.5mm audio splitter connector
Control Methods Pushbutton, infrared remote control, RS232 serial port
Power Supply DC 12V 2A
Power Consumption 12W
Storage/Working Temperature -10～50ºC / 0～50ºC
Package Weight 1.6KG
Warranty 3 Years
4K60 Video Wall Controller with 1 into 6 Out HDMI Video Processor and Low Power Conduction Cooling


Frequently Asked Questions
Why Choose Bitvisus?
  • Our own warehouse ensures shipping within 48 hours after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in video wall controller technology
How to Order?
  • Contact us via email, chat, or messaging platforms with your requirements
  • We provide proforma invoice based on your order request
  • After payment confirmation, goods are delivered promptly
Warranty & After-sales Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect models
Shipping & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
